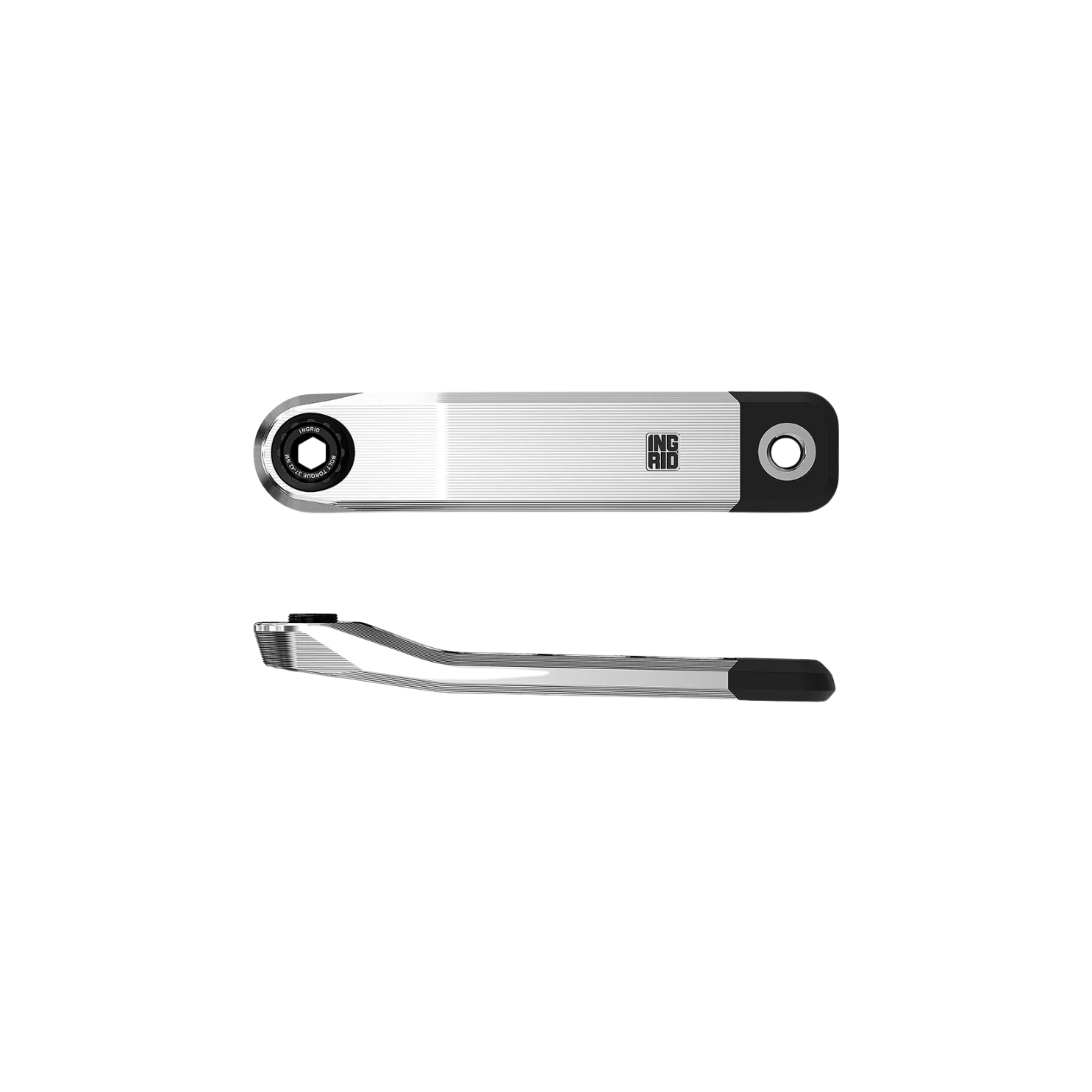

INGRID G2 Heavy Duty Crankset - Raw
We started the development of the first G in 2017 with the help and feedback from the guys of Bruno Zanchi team. Starting from the simple shape of a crank that needed hardiness more than tech speeches. Born in one single option in 172.5 mm and later in 170. Due to its heavy duty orientation the new G2 was made a little more shorter.
For the G2 only one word was considered: reliability.
For this reason, you can even use it in gravel, in bike packing, dirt, and whatever you want.
Compatible with any of our chainrings and spindles.
Specifications
Crank length: S (166.25)
Spindle: 30 mm
Chainrings: All INGRID chainrings and spider | SRM Origin PM (with dedicated spindle)
Chain compatibility: 11s | 12s | 13s (Campagnolo Ekar, SRAM Flattop)
K-factor: 91.5 mm (L131) | 96.5 mm (L136) | 101.5 mm (L141)
Q-factor: 163 mm (L131) | 168 mm (L136) | 173 mm (L141)
Chainline: 49.5 mm (L131) | 52 mm (L136) | 54.5 mm (L141)
Chainline (aero chainrings): 47.5 mm (L131) | 50 mm (L136) | 52.5 mm (L141)
Mfr Claimed Weight
598 g (SS cranks, L131 spindle, without chainring)
